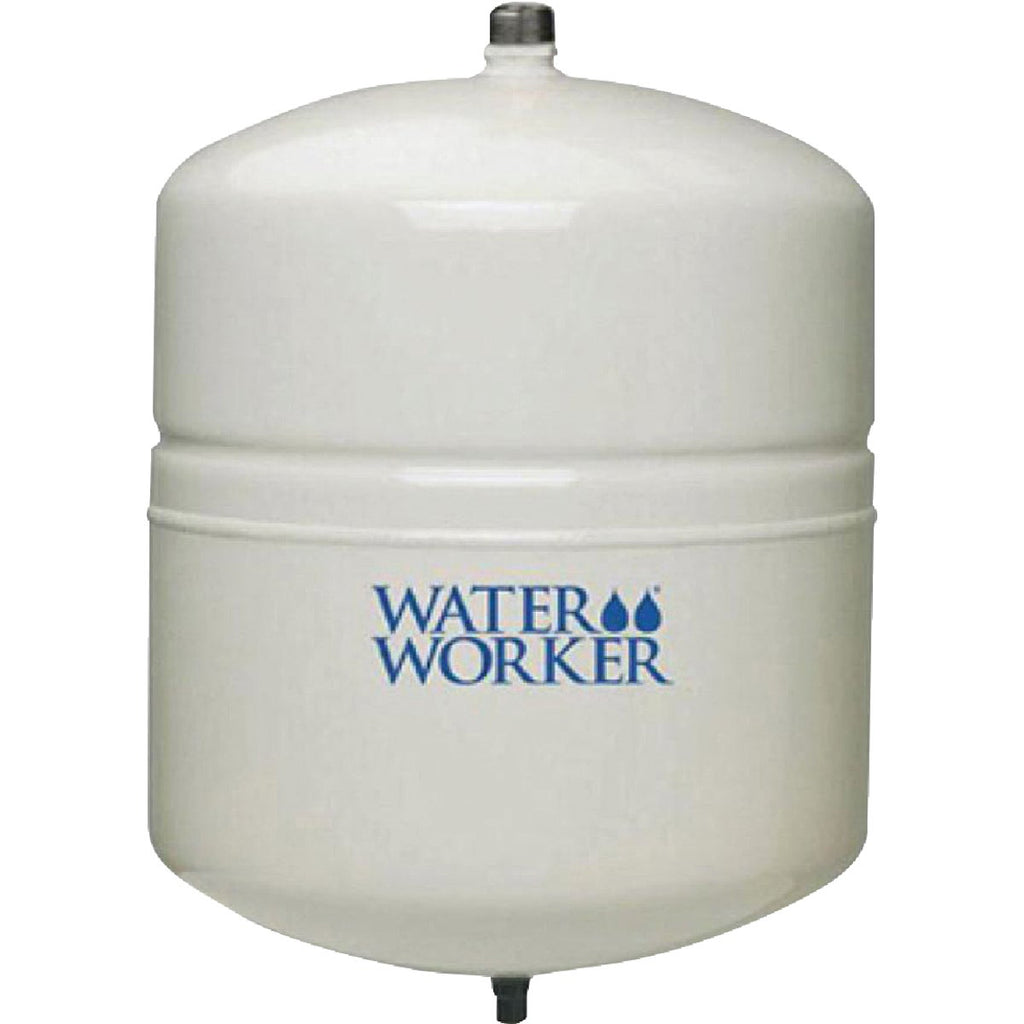

Water Worker 2 Gal. Water Heater Expansion Tank
Roll over image to zoom in Click on image to zoom
Water Worker 2 Gal. Water Heater Expansion Tank

Water Worker 2 Gal. Water Heater Expansion Tank

Water Worker
No reviews
Pack options: Pack of 1
Price:
$70.02
5
 More payment options

Specification

Capacity (Gal.)
2
Pressure Rating
150 psi
Diameter (In.)
8-1/2
Height (In.)
15
Material
Steel
Connection Size
3/4 In. MIP

About this item

  • Easy to install
  • Strong steel tank with enamel finish prevents corrosion in damp areas
  • Heavy-duty diaphragm for extended life
  • Polypropylene liner provides a corrosion resistant reservoir
  • Welded air charge fitting with protective plastic cap for corrosion resistance and air tight seal
  • Solid bronze saddle accepts L&M tubing

Description

Diaphragm-type pre-pressurized expansion tank specifically designed for potable hot water systems. These tanks control water pressure build-up and eliminate relief valve spillage caused by thermal expansion when water is heated. 3/4" Male pipe thread connection. Requires no maintenance. Required by code in many counties and states. Use model No. 993-024 for self-piercing valve. Specifications: Models G5, G5L, G12, G12L; Maximum allowable working temperature: 200 deg. F.; Standard factory precharge: 40PSIG (Relief valve must be set at 150PSIG). Maximum pressure maintained at least 10% below relief valve setting (150PSIG); Models are listed with IAPMO (International Association of Plumbing and Mechanical Officials) and SBCCI (Southern Building Code Congress International); Models are NSF (National Sanitation Foundation) Listed for liner only. 5 year warranty.

Prop 65 Warning

Warning: This product can expose you to chemicals including lead which are known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
