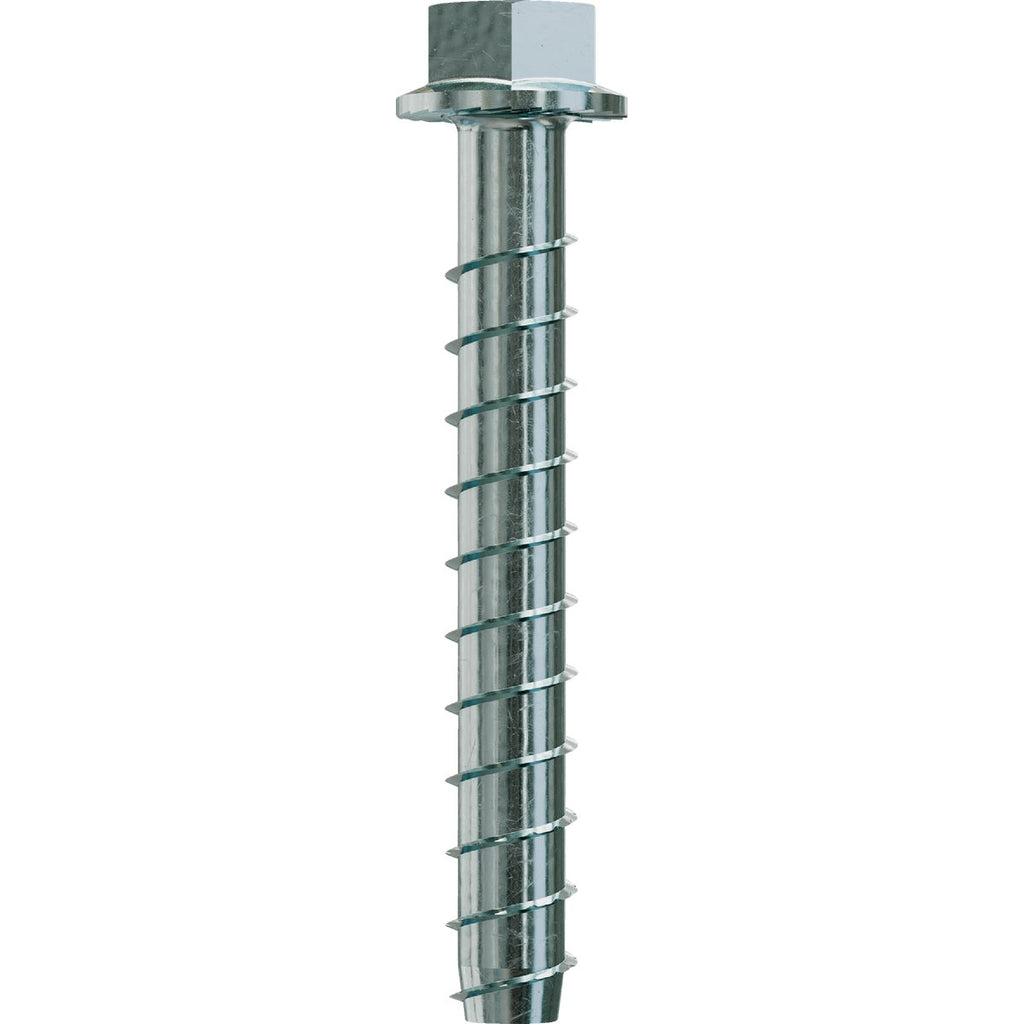

Simpson Strong-Tie Titen HD 5/8 in. x 5 in. Type 304 Stainless-Steel Heavy-Duty Screw Anchor (10-Count)

Roll over image to zoom in Click on image to zoom

Simpson Strong-Tie Titen HD 5/8 in. x 5 in. Type 304 Stainless-Steel Heavy-Duty Screw Anchor (10-Count)

Name: Simpson Strong-Tie Titen HD 5/8 in. x 5 in. Type 304 Stainless-Steel Heavy-Duty Screw Anchor (10-Count)
Brand: Simpson Strong-Tie
SKU: 224250
Price: 15.03 USD
Availability: InStock

Simpson Strong-Tie

Pack options: Pack of 1

Save 5.71% for each when buying a Pack of 10

Variant

Price:

$15.03

Quantity:

5

Share this product

Thread Diameter

5/8 in.

Length

5 In.

Head Type

Hex Washer

Material

Stainless Steel

Finish

Stainless Steel

Qualified for static and seismic loading conditions
Thread design undercuts to efficiently transfer the load to the base material
No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits

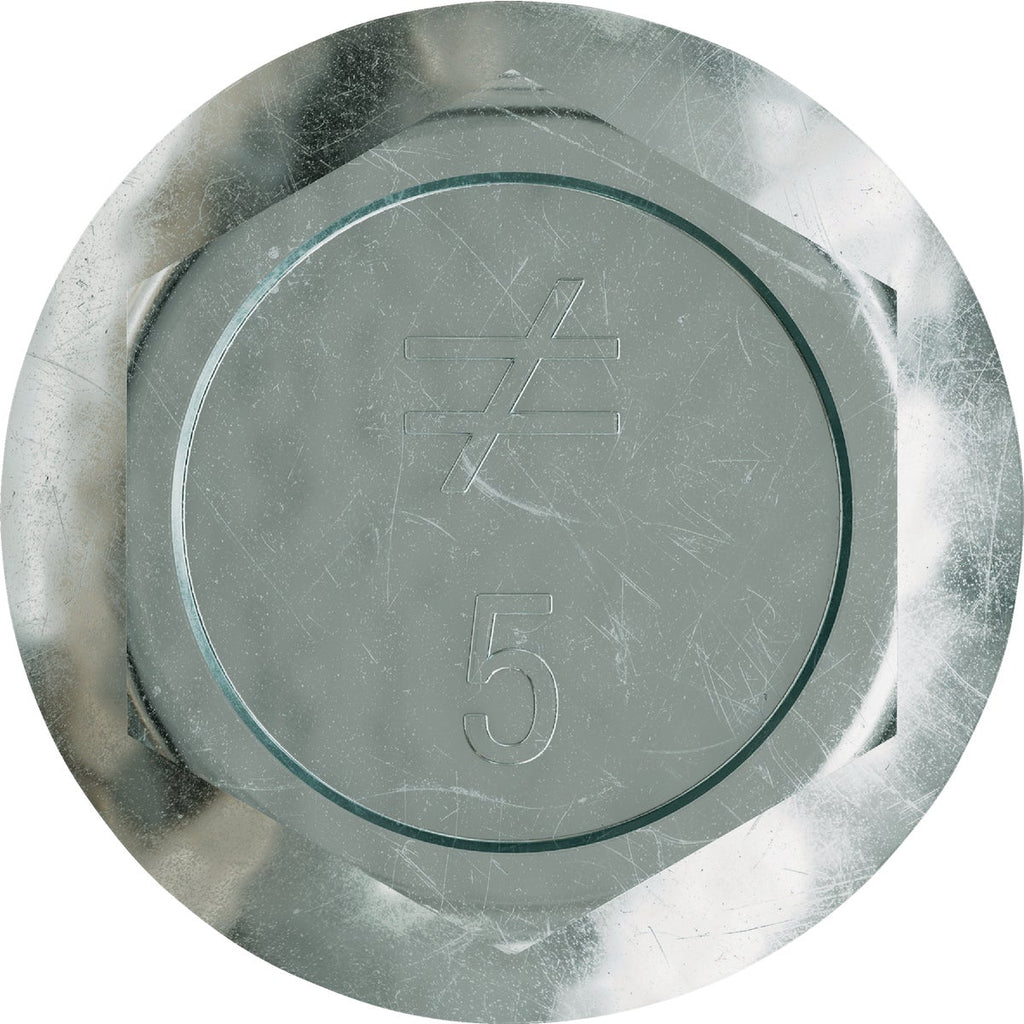

Hex-washer head requires no separate washer and provides a clean installed appearance
The THDSS has an innovative carbon-steel thread that effectively cuts the concrete while significantly limiting the amount of carbon steel in the anchor; less carbon steel, less expansion
Caution: Use a Titen HD screw anchor one time only installing the anchor multiple times may result in excessive thread wear and reduce load capacity

The Titen HD stainless-steel screw anchor for concrete and masonry sets the standard for when the job calls for installation in multiple types of environments. It is the ultimate choice to provide fast and efficient installation, combined with long-lasting corrosion resistance for an unsurpassed peace-of-mind. The THDSS is a state-of-the-art screw anchor solution that combines the corrosion resistance of Type 300 Series stainless steel with the undercutting ability of heat-treated carbon-steel cutting threads. Type 316 is the optimal choice for applications in corrosive or extreme environments such as salt water, or when chemical or corrosive solutions are present. Type 304 is a cost-effective solution for less extreme applications where the environment may be wet, moist or damp.
