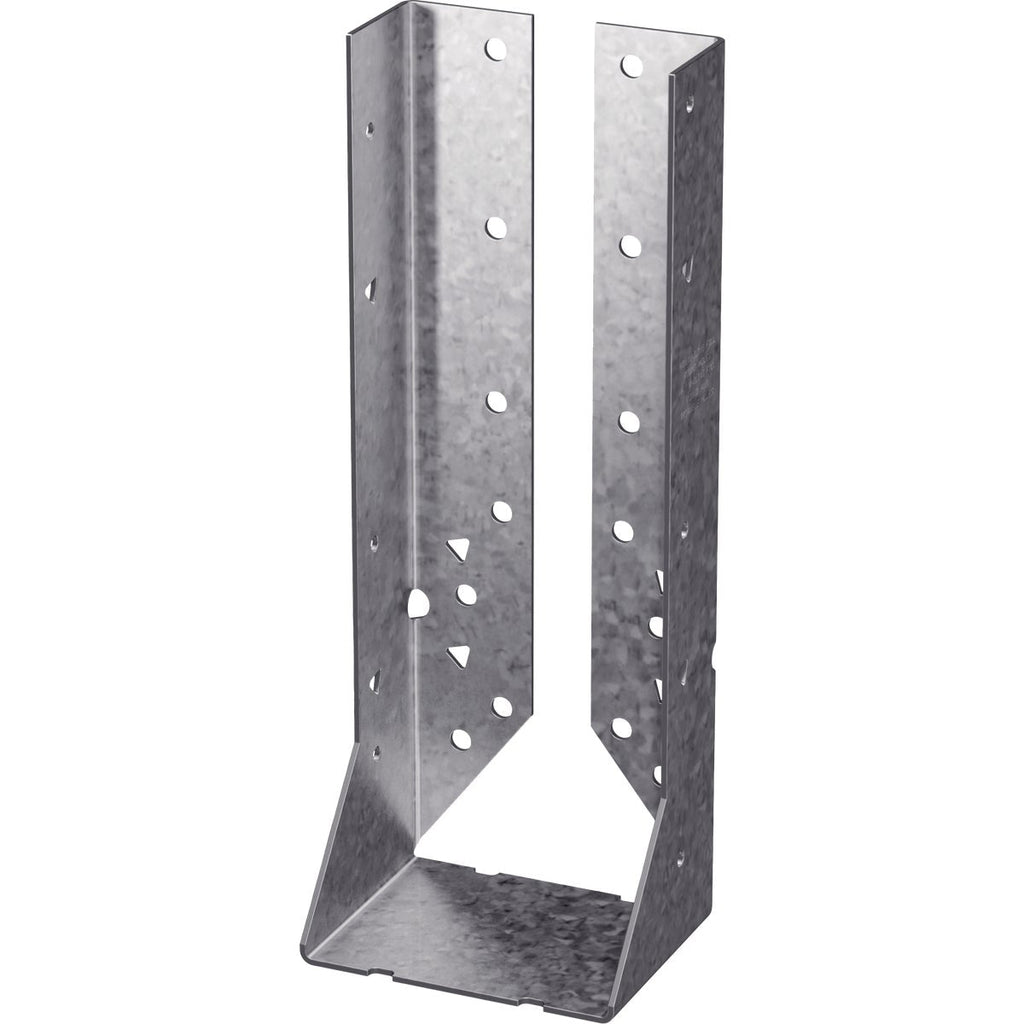

Simpson Strong-Tie Galvanized 2 x 10 Double Shear Concealed Flange Face Mount Joist Hanger

Roll over image to zoom in Click on image to zoom

Simpson Strong-Tie Galvanized 2 x 10 Double Shear Concealed Flange Face Mount Joist Hanger

Name: Simpson Strong-Tie Galvanized 2 x 10 Double Shear Concealed Flange Face Mount Joist Hanger
Brand: Simpson Strong-Tie
SKU: 108698
Price: 26.15 USD
Availability: InStock

Simpson Strong-Tie

Pack options: Pack of 1

Save 4.75% for each when buying a Pack of 25

Variant

Price:

$26.15

Quantity:

5

Share this product

Material

Steel

Gauge

14

Joist Size

2 In. x 10 In.

Type

Face Mount

Finish

Galvanized

Install With

Width (In.)

2.5

Height (In.)

8.81

Base (In.)

5.67

Provides a heavy-duty connection between joist and header
The concealed-flange design provides cleaner lines for visible applications such as second-story decks and patio covers
Install wood joists to wood, masonry and concrete
Seat width: 3-1/8 in.
Nominal joist Size: Double 2x10
Made from 14-gauge steel ZMAX

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. HUC heavy-duty face-mount joist hangers are designed for schools and other structures requiring additional strength, longevity and safety factors. Install wood joists to wood, masonry and concrete. Seat width: 3-1/8 In. Nominal joist size: Double 2x10. Made from 14 Ga. steel. ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications.
